Bladder Tank - 150 PSI - Non-ASME - 3/4-Inch NPT - 10.3 Gallon
Currently, there are no documents available for this product.
Currently, there are no specifications available for this product.
| Title | Price | Quantity | In Cart | |
|---|---|---|---|---|
|
WGR957 Bladder Tank - 150 PSI - Non-ASME - 3/4-Inch NPT - 10.3 Gallon |
$353.64
MSRP: $424.37 Margin: 20% |
Details

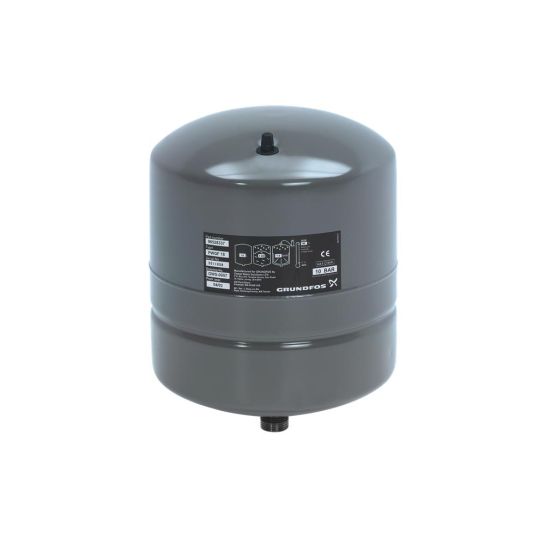

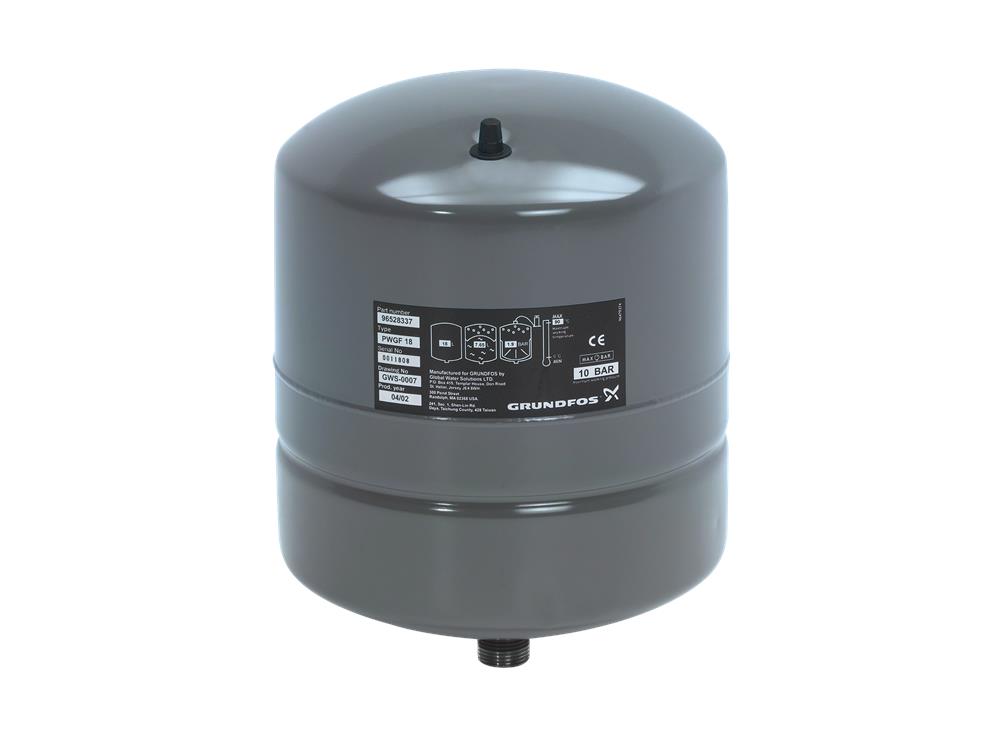

GT-H is a steel pressure tank with a non-toxic butyl rubber diaphragm with a precision-moulded polypropylene liner for air and water separation designed for drinking water applications.
Product name
GT-H-12 PN10 G 3/4 V
Product No
96528336
EAN number
5700397133354
Technical
Approvals: CE,EAC
Approvals for drinking water: WRAS,ACS
Membrane type: diaphragm
Tank volume: 12 Liter
Materials
Tank: Carbon steel / Polypropylene
Diaphragm: BUTYL, Rubber
Installation
Maximum operating pressure: 10 bar
Pre-pressure: 1.9 bar
Type of connection: G
Size of connection: 3/4 inch
Tank orientation: Vertical
Liquid
Liquid temperature range: 0 to 90 °C
Others
Net weight: 2.7 kg
Gross weight: 3.2 kg
Application type: Standard
Danish VVS No.: 398254812
Norwegian NRF no.: 8402806
Environmental approvals: WEEE
