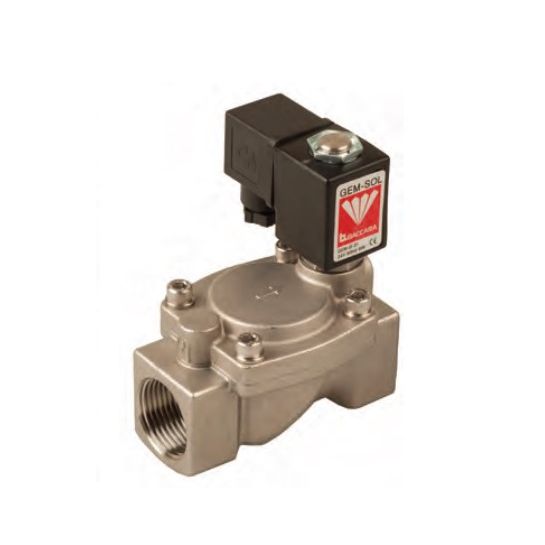

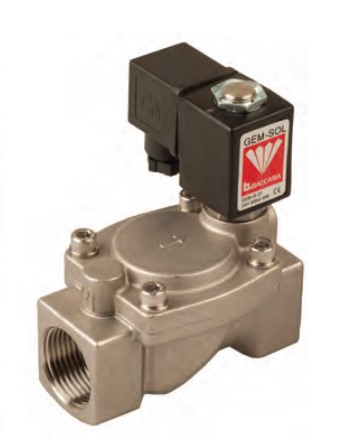

Aquagation Stainless Steel 2-Way Valve - Normally Closed w/ LED - 220V - 1-Inch NPT
Availability: In stock
Currently, there are no documents available for this product.
Currently, there are no specifications available for this product.
| Title | Price | Quantity | In Cart | |
|---|---|---|---|---|
|
WAQ105 Aquagation Stainless Steel 2-Way Valve - Normally Closed w/ LED - 220V - 1-Inch NPT |
$732.56
MSRP: $879.07 Margin: 20% |
Details
TECHNICAL DATA
Function
2 Way NC, NO
Ports size 1/4", 3/8", 1/2", 3/4", 1" BSP & NPT
Pressure Range & Kv (l/min)
See table
* Minimum pressure differential of 0.3 or 0.5 is required
Temperature Range
Fluid: -10ºC to 80ºC (no freezing)
Ambient: -10ºC to 50ºC
Materials In Contact w/ Media
Manual override: NC/NO - Brass screw
Main Valve: Brass, Stainless Steel AISI 316
Solenoid Operator: Stainless Steel AISI 300 & 400 series
Seals: NBR, FKM, EPDM

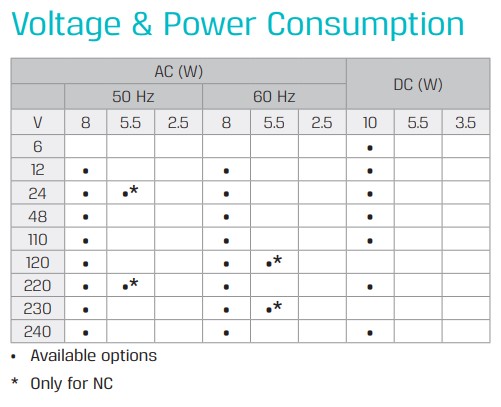

Coil Voltage
Voltage and power consumption - see table
All Baccara coil voltages are ± 10% of nominal
Standard Protection Class
IP65 with connector
* Option: IP68 (please refer to GEM-BP Coil)
