Aquagation AquaDrip Emitters
Currently, there are no documents available for this product.
Currently, there are no specifications available for this product.
| Title | Price | Quantity | In Cart | |
|---|---|---|---|---|
|
WAQ800 Aquagation AquaDrip Emitter Blue/Light Gray - Conic + Barb - 1.1 LPH - 0.29 GPH (Bag of 1000) (4,000/Cs) |
$209.59
MSRP: $251.51 Margin: 20% |
||
|
WAQ804 Aquagation AquaDrip Emitter Brown/Light Brown - Conic + Barb - 2.0 LPH - 0.53 GPH (Bag of 1000) (4,000/Cs) |
$209.59
MSRP: $251.51 Margin: 20% |
||
|
WAQ806 Aquagation AquaDrip Emitter Brown/Black - Conic + Barb - 3.85 LPH - 1.02 GPH (Bag of 1000) (4,000/Cs) |
$218.70
MSRP: $262.44 Margin: 20% |
Details

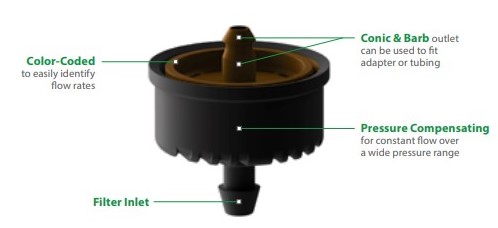

Aquagation AquaDrip emitters offer consistent flow with improved clog resistance verses the other brands of drip emitters.
These emitters are specifically comprised of two colors, the BASE COLOR (Lower/outside color) represents the opening pressure while the COVER COLOR (Upper/center color) represents flow rate.
PRESSURE COMPENSATING
Pressure compensating (aka "No Drain" or ND) means emitters contain a check valve that does not allow the feed line tube to drain out when the pump shuts off and pressure drops. The emitters will close when their minimum operating pressure hits and will hold water in the line rather than letting it drain out to the crop. The main advantage of pressure compensating drip emitters is that crops will receive equal volume of irrigation solution and upon starting the system water held back by the valve in the emitter will immediately begin to flow.
FLOW RATES
Common flow rates for this emmiter are 0.53, 0.58, 1.02, 2.06, 3.17, and 6.6 GPH
CRACK PRESSURE
The pressure required to open an emitter and initiate watering is called crack pressure.
- Low pressure
- Medium pressure
- High pressure
MAXIMUM OPERATING PRESSURE SHOULD NOT EXCEED 49 PSI OR DAMAGE TO THE INTERNAL DIAPHRAGM MAY OCCUR.
TUBING COMPATIBILITY
AquaDrip emitters work iwth 3mm x 5mm (0.118-Inch x 0.197-Inch) micro tubing. Emitters can also be installed without tubing if desired.
INSTALLATION
Use 2mm (0.079-Inch) punch tool
FILTRATION REQUIREMENTS
120 mesh for all emitters
OUTLET OPTIONS
- Straight Conic x Barb Outlet - Designed for single stake and multi-outlet assemblies
- Barbed Side Outlet - Designed for ergonomic side outlet tubing connection to reduce kinks in micro tubing
Applications
- Greenhouses and nurseries
- Grapes (Wine grapes and table grapes)
- Pistachios
- Almonds
- Pecans
- Other permanent crops
Advantages
- Perfect for sloping terrain or long runs where irrigation to crops would vary
- Flow rates options to help find the perfect fit
- Self-activating flushing mechanism to provide excellent clog resistance
- Can connect to multi-outlet assemblies such as 2-way and 4-way
- UV protection for long duration of use
