FanDrive Speed Controller - 0 to 10 VDC Signal - 120/230V - FD-1S-1400 Controller

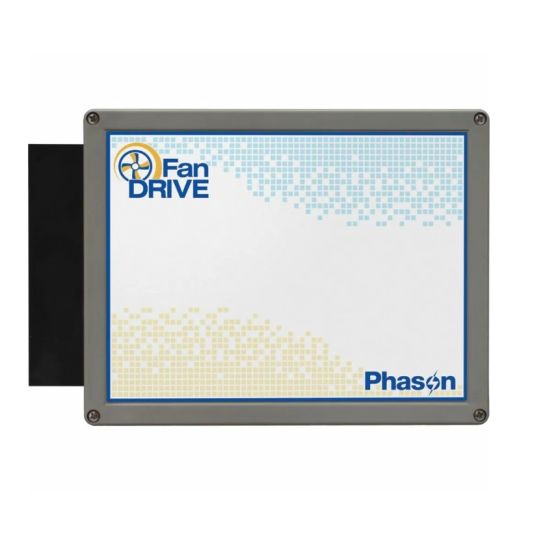

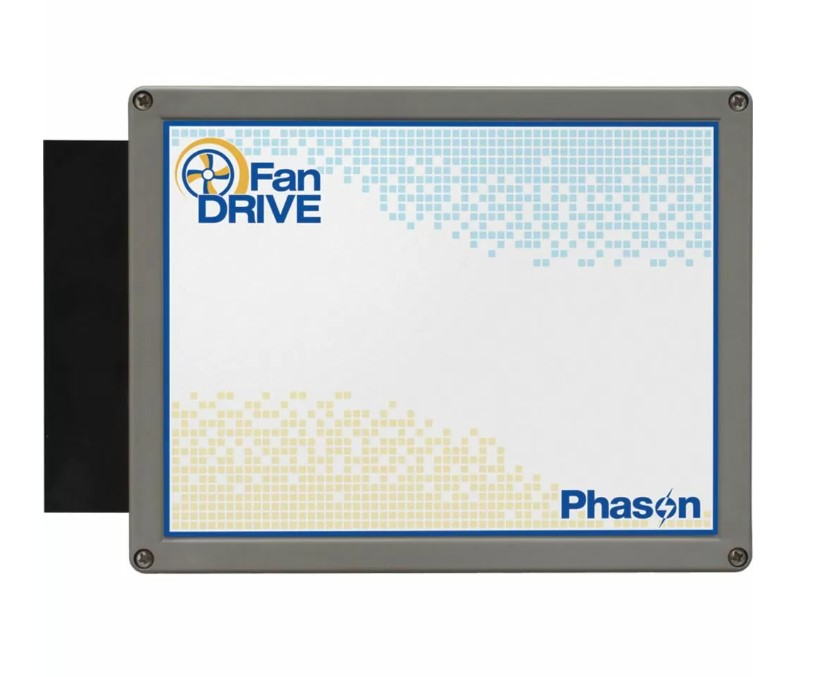

The Phason FD-1-14 FanDRIVE is a cost-effective way to increase the capacity of your fan control system. This is a slave control that has one 14 FLA variable AC stage for adjusting fan speed. It installs easily and requires no additional programming.

The FanDRIVE connects to a master control and accepts 0 to 10 VDC signals that set the variable AC outputs. Installation is simple and there is no additional configuration required; FanDRIVEs follow the programming of the master control. It can control fans connected to any phase. This gives you the ability to distribute loads between all phases on a three-phase system.

Features:

• Variable AC stage
• DC signal input (0 to 10 V)
• Manual override
• 4 motor curve options
• Expandable capacity using additional units
• NEMA 4X enclosure (corrosion resistant, water resistant, and fire retardant)
• CSA approval
• Limited 2-year manufacturer warranty

Incoming Power:

• 120/230 VAC, 50/60 Hz

Variable AC Stages:

• 14 FLA at 120/230 VAC, PSC motor
• 1 HP at 120 VAC, 2 HP at 230 VAC, PSC motor

Control Fuse:

• 250 V, 1 A fast-acting glass

Variable DC Signal:

• 0 to 10 V, 30 mA

Compatible Phason Controls: AutoFlex, PBx-10, PBx-11, SEC-DC, SSV-DC, Supra
